Arrange a form with blocks and columns

Before you start

• Build a form

Blocks give a long form a shape. Use them to group fields by topic, and use columns and field widths to make the page easy to scan. This page covers the block header, the column switch and the Display options of a field.

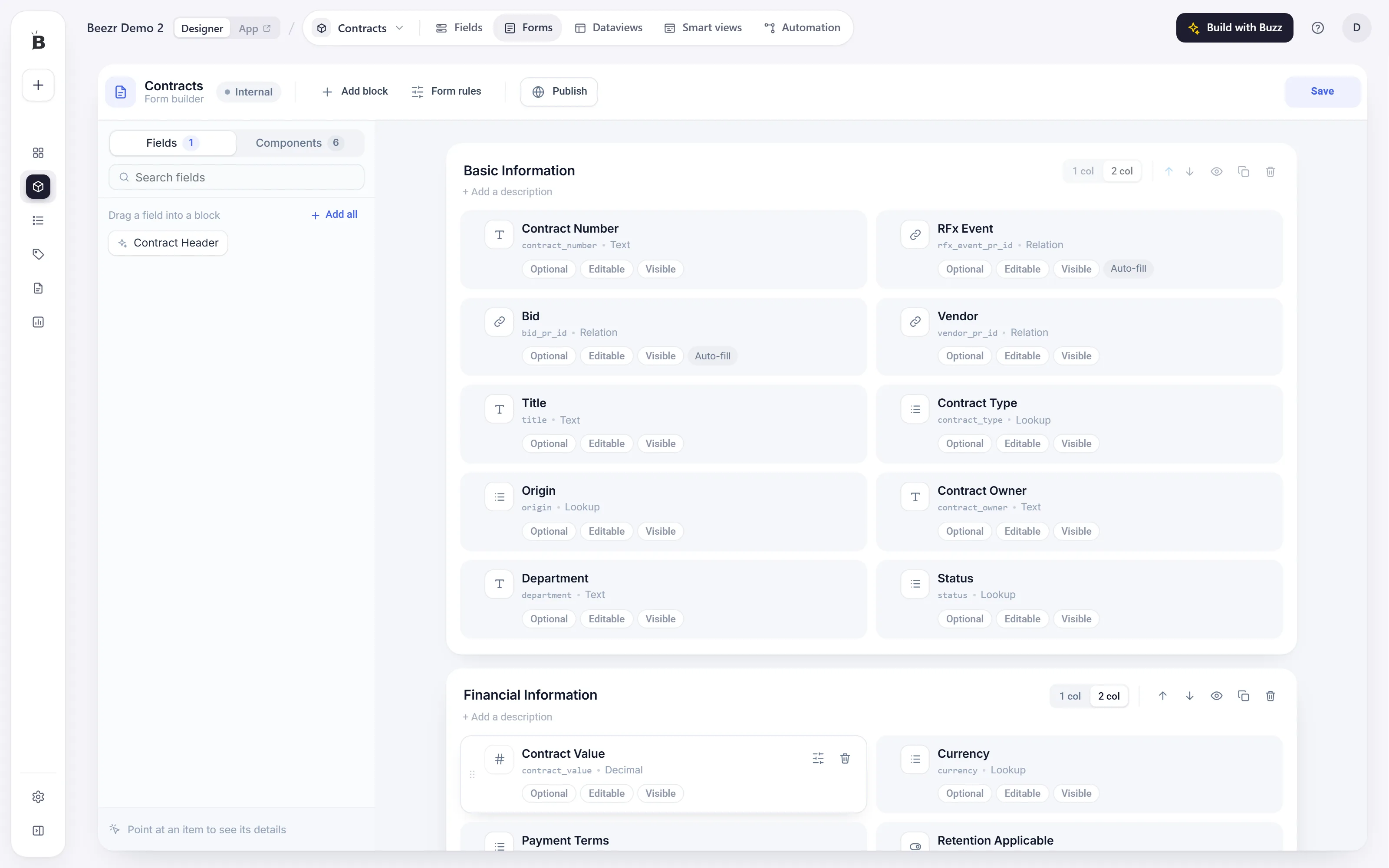

What does the block header do?

○ ○ ○Beezr

×

Add a description puts a short line under the block title.
1 col and 2 col choose how many fields share a row.
The icons move the block up or down, open Block rules, duplicate it and delete it.
On a field card, the sliders icon opens Display options.

Part of the header	What it does
Title	The block’s name. Give every block a title
Add a description	A short line under the title. Click it to edit
1 col / 2 col	One field per row, or two fields side by side
Up and down arrows	Move the block up or down
Eye icon	Opens Block rules. See Show or lock a block with rules
Copy icon	Duplicates the block with its layout, rules and components
Bin icon	Deletes the block after you confirm. Its fields go back to the field list

Tip from a Beezr Consultant

Name blocks after the question the reader is answering: “Who is the vendor?”, “How much does it cost?”. A good title saves a description.

Add, rename and move a block

1. Click Add block in the toolbar, or the Add block link under the last block.
2. Click the title “New block” and type a name.
3. Optional: click Add a description and type a sentence. Click Save in the small dialog.
4. Use the arrows to place the block.

Drag fields between blocks with the grip on the left of each card. An empty block shows “Drop fields here”.

Choose one or two columns

A new block has 2 columns. Switch it with 1 col or 2 col in the block header. In a 1 col block every field takes the whole row.

In a 2 col block you can give one field the whole row, which suits a long text or a notes field.

Set display options for a field

Click the sliders icon on a field card. Display options opens with the field’s label in its title.

Setting	What it does
Width in a two-column block	Half (one column) or Full row
Enable field message	Switches on a hint for this field
Message text	The hint itself. Shown only when the message is enabled
Message position	Below the field, or Inside the field, as a placeholder
Show options as a list	Lookup fields only. People pick with one click instead of opening a dropdown
Layout	For a lookup shown as a list: Dropdown, One column or Two columns
On the public form	Appears after the form is published. See Publish a public form

Click Save in the dialog, then Save on the form. The card then shows chips such as Full width, Help text, Option list or 2-column options.

A field message that is long reads badly as a placeholder, because it disappears when people start typing. Use Below the field for anything longer than a few words. Show options as a list suits short lists. Beezr’s own hint says “Best for short lists”.

What happens to the fields in a block I delete?

They go back to the Fields tab. Nothing is deleted from your data. If you want the fields gone from the module as well, delete them on the Fields page.

What should I know before I start?

• Keep at least one block on the form.
• A Button takes one column in a 2 col block. Every other component takes the full row.
• Width is a 2 col setting. Choose Half or Full row there.
